How to Select Busbar Trunking Feeder Box for High Rise Buildings

High-Rise Feeder Box Selection Challenges

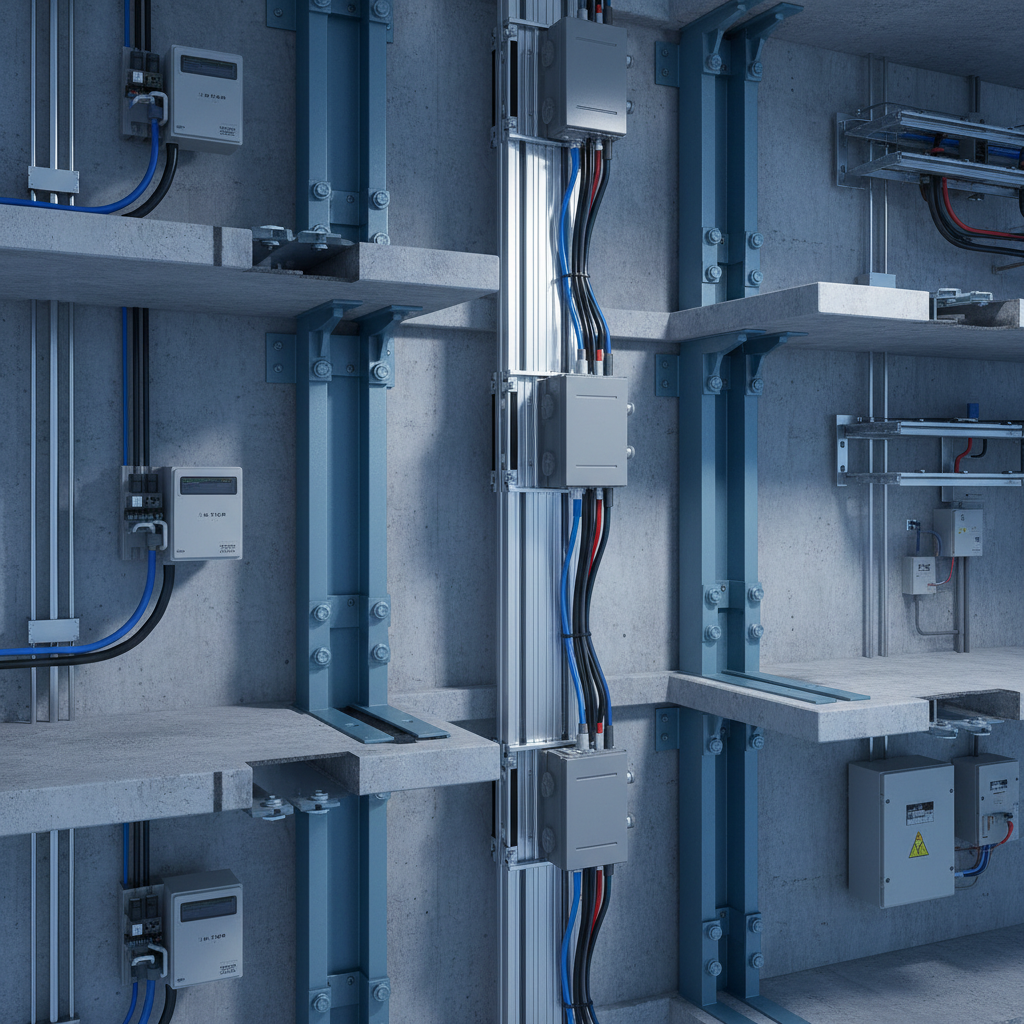

As a specialized manufacturer of power distribution systems, we at ZHERUTONG understand that designing a reliable vertical power grid in a skyscraper is very different from standard horizontal installations. When electrical engineers and procurement officers ask how to select busbar trunking feeder box for high rise buildings, the discussion must immediately shift to the unique environmental and mechanical stresses found in vertical electrical shafts. In tall buildings, electrical shafts work like chimneys. Heat produced by continuous electrical loads rises and builds up on higher floors, creating serious thermal accumulation problems that reduce the performance of standard electrical components. On top of that, the extreme vertical height places significant gravity-driven mechanical stress on every connection point. The feeder box, which serves as the critical tap-off node that transfers power from the main vertical riser to individual floor distribution boards, takes the full force of these stresses. If the enclosure design, contact jaws, or internal circuit breakers are not specifically built for these high-altitude, poorly ventilated environments, serious failures such as localized melting or phase-to-phase short circuits become unavoidable, leading to major facility downtime and serious safety risks. To ensure long-term stability, engineers must evaluate thermal behavior, structural strength, and fault tolerance with complete precision before finalizing a specification.

Load Capacity and Short Circuit Protection

Understanding how to select busbar trunking feeder box for high rise buildings requires a strict approach to dynamic load capacities and short-circuit protection coordination. In a vertical shaft, surrounding temperatures can easily go beyond standard testing conditions. Our internal laboratory heat-rise tests at ZHERUTONG reveal important data: when a feeder box is installed in an unventilated high-rise electrical shaft above the twentieth floor, the ambient temperature around the enclosure typically rises by twelve to fifteen degrees Celsius compared to the basement level. This thermal trap makes a strict derating factor necessary. Based on our thermal chamber testing, engineers must apply a derating coefficient of zero point eight five to the internal circuit breaker's rated current to prevent unnecessary tripping during peak load hours.

Beyond continuous current, short-circuit withstand strength coordination is essential. As our Chief Electrical Engineer explains, "Coordinating the short-circuit rating is not simply about matching numbers; it is about making sure the plug-in jaws maintain firm clamping pressure during the electromagnetic shockwave of a fault, preventing arc flashes."

To accurately size the unit, electrical engineers should follow these step-by-step load calculation considerations:

• Calculate the diversified peak load of the specific floor, accounting for heavy starting currents.
• Apply the necessary altitude and temperature derating factors specific to the unventilated shaft environment, using the zero point eight five multiplier for upper floors.
• Verify the expected short-circuit current at the specific tap-off point, making sure the internal breaker's ultimate short-circuit breaking capacity exceeds this calculated fault level.
• Evaluate the harmonic distortion produced by non-linear loads, which may require oversizing the neutral conductor within the tap-off unit to prevent dangerous overheating.

  IP Rating and System Coordination Rules

  The physical environment of a skyscraper's electrical shaft determines the necessary ingress protection levels for all distribution equipment. A critical step in understanding how to select busbar trunking feeder box for high rise buildings is matching the enclosure's ingress protection rating to the specific installation zone. A single high-rise project often contains several different micro-environments. Transition zones may deal with moisture getting inside, while upper shafts stay dry but are prone to heavy dust buildup during construction. Additionally, zones fitted with active sprinkler systems require a much higher level of liquid protection to prevent serious short circuits during a fire suppression event.

  System coordination goes beyond just electrical ratings; it also involves the precise mechanical alignment between the main trunking line and the tap-off unit. The enclosure material must be rigid enough to maintain its protection rating even when exposed to the structural vibrations that are common in tall buildings. At ZHERUTONG, we require strict adherence to a zone-based selection method to guarantee both safety and long service life.

  High-Rise Environment Zone	Required IP Rating	Enclosure Material Specification
  Standard Dry Electrical Shafts	IP54	Cold-rolled steel with anti-corrosion powder coating
  Basement Transition Zones	IP65	Galvanized steel with reinforced moisture gaskets
  Sprinkler-Equipped Zones	IP65 or IP66	Seamless welded aluminum alloy or stainless steel
  Heavy Industrial Plant Floors	IP66	Extruded aluminum with heavy-duty dust seals

  By carefully following this selection matrix, engineers can eliminate the risk of environmental contamination affecting the internal circuit breakers or the critical plug-in contact points.

  Installation Requirements and Core Specifications

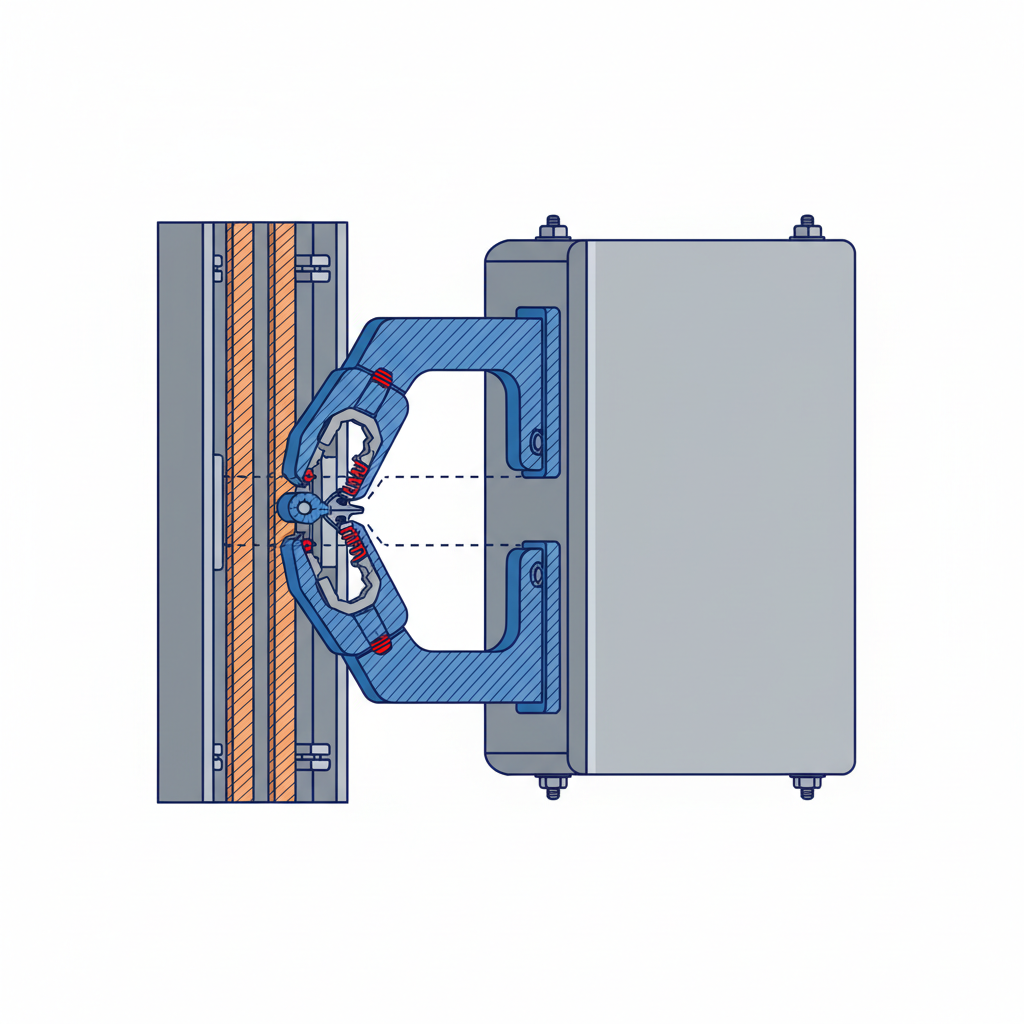

  Mastering the busbar trunking feeder box installation requirements and specifications is essential, especially when dealing with gravity-driven stresses in vertical applications. A common failure point that generic engineering guides overlook is the mechanical load placed on the plug-in contact pins. In vertical risers, the combined weight of the feeder box enclosure and the heavy internal molded case circuit breaker can cause the unit to sag if it is not properly supported. When this happens, the copper plug-in jaws carry the gravitational weight, leading to contact deformation, increased electrical resistance, and eventual thermal runaway. To prevent this, ZHERUTONG has developed specific mechanical support methods that shift the weight away from the electrical contacts and directly onto the structural mounting brackets.

  Follow these step-by-step installation specifications to ensure mechanical and electrical integrity:

  1. Verify the alignment of the vertical busbar trunking system, making sure the tap-off slots are perfectly parallel to the floor level before attempting insertion.
  2. Install the independent load-bearing support brackets on the shaft wall, adjusting the height to match the exact insertion point of the tap-off unit.
  3. Engage the plug-in jaws into the trunking slot using a smooth, straight-line pushing motion to avoid bending the outer phase contacts.
  4. Secure the primary mechanical locking mechanism, making sure the enclosure is firmly bolted to the independent wall brackets so that no gravitational weight is transferred to the copper pins.
  5. Conduct a micro-ohm resistance test across the phase connections to confirm proper contact pressure before sealing the enclosure cover.

  Proven Case Study in Commercial Towers

  To illustrate these engineering principles, we look at a recent deployment in a major commercial twin-tower complex in Southeast Asia. OEM project managers contacted ZHERUTONG after experiencing serious power distribution failures.

  The Problem: The facility management team reported frequent circuit breaker tripping and localized overheating in tap-off units located above the thirtieth floor. Our field engineers performed a thorough power quality analysis and found that severe harmonic loads generated by the commercial HVAC systems and large arrays of LED lighting were producing massive neutral currents. Made worse by poor shaft ventilation in the upper structural zones, the standard off-the-shelf units were experiencing dangerous levels of heat buildup.

  The ZHERUTONG Solution: We engineered and manufactured custom oversized neutral feeder boxes specifically designed to handle the non-linear harmonic distortion. These specialized units featured advanced thermal dissipation fins milled directly into the outer enclosure to maximize passive cooling. In addition, we installed upgraded plug-in jaw contact pressure mechanisms using high-tensile spring steel to ensure the copper contacts stayed tightly clamped against the busbars despite extreme thermal cycling.

  The Result: Following the installation of our custom solutions, the twin-tower complex achieved zero thermal-related faults after commissioning. Most importantly, our extensive field testing produced a valuable experimental finding: *the combination of advanced thermal dissipation fins and upgraded contact pressure resulted in a sustained fifteen percent reduction in contact temperature compared to standard market boxes operating under identical harmonic load conditions.* This data confirms that tailored engineering is absolutely necessary for high-rise infrastructure.

  Frequently Asked Questions on Feeder Boxes

  Horizontal Installation in High-Rises?

  Standard units do not have the specialized locking mechanisms required for vertical shafts. Vertical installations require unique anti-slip brackets to counteract gravity. Using horizontal units in vertical applications violates strict busbar trunking feeder box installation requirements and specifications, which leads to failure.

  Verifying Contact Resistance Pre-Power?

  Engineers must use a digital micro-ohmmeter to measure resistance across the phase connections after mechanical insertion but before engaging the internal circuit breaker. Readings should consistently fall below the micro-ohm threshold specified in our factory testing data to confirm optimal clamping pressure.

  Maximum Supported Breaker Sizes?

  Standard vertical tap-off enclosures can accommodate molded case circuit breakers up to eight hundred amperes. For heavier loads, we recommend a custom-engineered high-capacity unit with reinforced thermal management.

  Finalizing Your Custom Feeder Box Solution

  Selecting the right unit affects the safety of an entire building. As a dedicated manufacturer, ZHERUTONG has the specialized tooling, laboratory data, and field experience needed to engineer power distribution components that perform well in demanding vertical environments. Whether handling aggressive harmonic loads or requiring custom enclosures for sprinkler-equipped zones, our capabilities ensure your infrastructure stays reliable. We welcome engineers to work directly with our technical team.
