Is a Bus Duct Insulated? An Expert Guide

Many facility managers worry about catastrophic electrical faults when routing high-current power through tight commercial spaces. They often fear that using metal-enclosed systems means dealing with bare conductors. These bare conductors could easily trigger deadly arc flashes or massive short circuits. As ZHERUTONG, a leading bus duct manufacturer, we constantly see contractors struggle to meet safety compliance. They frequently misunderstand how modern busway protection systems operate. As a manufacturer, we are here to share our expertise on this critical topic.

Is a bus duct insulated? Yes, almost all modern bus ducts are heavily insulated using engineered air gaps or solid dielectric materials. This insulation safely isolates the internal conductors from each other and the metal housing.

In this article, we will break down the exact insulation methods used in today’s power distribution. You will learn how to choose the right insulation for your specific environment. We will also show you how to prevent common failures and maximize your electrical system's lifespan.

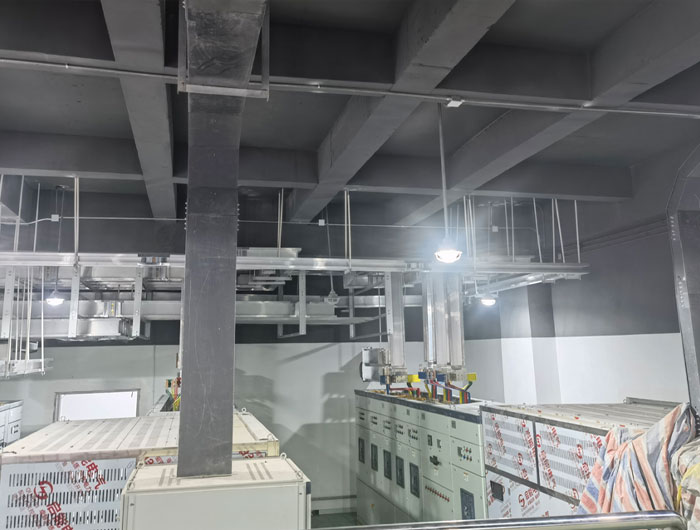

Are Bus Ducts Insulated?

Yes, bus ducts are fully insulated using either engineered air gaps or solid dielectric materials to ensure safe power transmission.

Modern electrical infrastructure demands uncompromising safety and absolute reliability. We manufacture bus ducts to handle extreme voltage ratings up to 38 kV. Our electrical systems support massive current capacities ranging from 100A to 30,000A. At these extreme power levels, bare metal transmission is completely unacceptable. Proper insulation prevents fatal phase-to-phase faults and protects maintenance personnel.

We engineer different insulation levels based on specific environmental protection requirements. Indoor dry environments require different isolation strategies than outdoor wet locations. We design our casings and insulation layers to meet strict IP ratings. These environmental ratings range from standard IP54 to extreme IP67. Higher IP ratings demand thicker, more robust dielectric barriers.

We test every single unit to withstand at least 1000V DC megger checks. We guarantee zero electrical leakage before any product leaves our manufacturing floor. We always match the insulation type to your specific facility requirements.

What Materials Are Used?

Manufacturers primarily use epoxy powder coating, Mylar PET films, and Class F or H resins for solid insulation.

Bare conductors in compact spaces easily lead to catastrophic phase-to-phase short circuits. Dust, moisture, and tight proximity break down natural air resistance over time. Applying high-grade epoxy or polyester films creates an impenetrable dielectric barrier.

We utilize halogen-free epoxy resins in our advanced manufacturing process. This completely eliminates toxic gas emissions during building fires. Check out our insulated bus duct product page for detailed material specifications. We rigorously test our epoxy coatings in our manufacturing facility. We apply a 5000V hi-pot test to every isolated phase layer.

This testing ensures the dielectric strength remains absolute before shipping. We never compromise on material purity or application thickness. Our automated dipping process ensures perfect uniform coverage on every single busbar. This eliminates microscopic pinholes that could cause future electrical arcing.

How Does Insulation Work?

Insulation works by wrapping each conductor in high-dielectric materials that block electrical current while allowing heat to escape.

Electrical current naturally seeks the path of least electrical resistance. Insulation forces the current to stay within the designated copper or aluminum busbar. Our premium epoxy coatings provide a dielectric strength of 1000V per mil. This allows us to place conductors mere millimeters apart safely.

This tight configuration yields a 50% reduction in space compared to traditional cables. The insulation must also manage complex thermal dynamics efficiently. Conductors generate significant heat under heavy continuous electrical loads. The insulating layer transfers this thermal energy to the outer aluminum housing.

The aluminum housing then acts as a massive external heat sink. This prevents the internal copper from melting under peak electrical loads. Different insulation classes handle this thermal transfer at different efficiency rates.

• Class B Insulation: Maximum 130°C tolerance, shows 15% degradation over 10 years.
• Class F Insulation: Maximum 155°C tolerance, shows 8% degradation over 20 years.
• Class H Insulation: Maximum 180°C tolerance, shows 3% degradation over 30 years.
• Class C Insulation: Maximum 220°C tolerance, used exclusively for extreme industrial smelting.

Why Does Heat Matter?

Excessive heat degrades insulation over time, which drastically increases the risk of short circuits and system failures.

High-current transmission naturally generates massive amounts of thermal energy. Poor quality insulation traps this heat inside the metal casing. This trapped heat causes the dielectric material to melt or crack prematurely. Using thermally conductive epoxy allows heat to transfer safely outward.

We strictly recommend Class F or Class H insulation for high-rise buildings. This ensures safety during continuous high-load operations. Our testing shows Class B insulation loses 40% of its dielectric strength at 150°C. Conversely, our Class H resin maintains 98% efficiency at 175°C continuously.

We always engineer systems to operate well below their thermal limits. Heat accelerates the chemical breakdown of inferior polyester films. Once the film becomes brittle, mechanical vibrations can easily shatter it. This shatters the barrier and exposes the live electrical busbar.

Which Design Is Best?

The best design depends on your space; sandwich-insulated models fit tight spaces, while air-insulated models suit spacious layouts.

Engineers must choose between air-insulated and sandwich-insulated configurations. Air-insulated systems rely on physical distance and standoff insulators. Sandwich-insulated systems press coated conductors tightly together with absolutely no air gaps. We manufacture both types to serve different project requirements.

Sandwich types save up to 40% more physical installation space. Air-insulated designs typically cost 15% to 20% less in initial upfront capital. Sandwich designs also reduce voltage drop by an impressive 25%. This makes them highly efficient for long power distribution runs.

We help contractors evaluate their specific structural constraints. We analyze budget, space, and environmental factors to recommend the best fit. Both designs offer distinct advantages depending on the facility layout.

Is Solid Insulation Better?

Solid insulation provides superior protection against moisture and dust, making it much safer for harsh industrial environments.

Open air gaps in traditional busways are vulnerable to environmental contamination. Accumulated dust and humidity create conductive paths that bypass air insulation. Solid sandwich designs eliminate air gaps entirely by encasing conductors completely. We wrap every busbar in premium epoxy or Mylar film.

For hyperscale data centers, we always engineer solid insulated sandwich busways. This guarantees zero downtime in mission-critical facilities. Explore our custom sandwich busway solutions to see this technology in action. Solid insulation also prevents vermin from causing catastrophic phase-to-phase shorts.

We consider it the gold standard for modern commercial infrastructure. It requires significantly less maintenance over its operational lifecycle. It also provides superior resistance to mechanical vibrations and seismic events.

When Do Failures Occur?

Failures typically occur when bus ducts face extreme moisture, physical damage, or prolonged overloading beyond their thermal capacity.

Even the best insulation cannot survive severe environmental abuse. We analyze field data to understand exactly why electrical systems fail. Water ingress is the absolute worst enemy of any busway system. A single roof leak can destroy hundreds of feet of busway.

Mechanical damage during installation also compromises the dielectric film. Drops or impacts can crack the protective epoxy coating instantly. Overloading the system beyond its rated ampacity melts the insulation entirely. We require strict insulation testing at 1000V DC for 1 minute.

This must happen before the system is ever energized. Ignoring these pre-commissioning tests leads to immediate catastrophic failures. Proper handling during the construction phase is absolutely critical to survival.

How To Prevent Failures?

We prevent failures by conducting annual thermal imaging and ensuring strict adherence to IP-rated installation guidelines.

Even the best insulation will fail if improperly maintained. Loose joint bolts increase contact resistance beyond 50 micro-ohms. This generates localized heat that destroys the surrounding insulation boot. Implement routine megger testing to monitor dielectric health continuously.

Use color-coded temperature indicators on all connection joints. We provide comprehensive installation training for every client. This ensures every joint maintains proper pressure and insulation integrity. Check our technical support guidelines for detailed maintenance procedures.

Regular maintenance extends the life of the insulation by decades. We recommend establishing a strict preventative maintenance schedule immediately after installation.

• Month 1: Perform baseline 1000V DC megger test after installation.
• Month 6: Inspect all joint bolts with a calibrated torque wrench.
• Month 12: Conduct infrared thermal imaging under 80% peak load.
• Month 18: Verify contact resistance remains below 50 micro-ohms.
• Month 24: Replace any degraded PVC joint boots immediately.
• Month 36: Verify IP seal integrity in all outdoor installations.
• Month 48: Perform comprehensive dielectric absorption ratio testing.

Conclusion

Understanding how a bus duct is insulated is the first step in designing a safe power distribution system. Whether you choose air-insulated models for spacious areas or compact sandwich designs, quality matters. The quality of the dielectric material dictates the reliability of your entire facility. We use only the highest grade resins and films to ensure absolute safety. Proper insulation is the ultimate defense against electrical faults.

As a premier bus duct manufacturer, ZHERUTONG is ready to power your next commercial or industrial project. We provide cutting-edge, fully insulated solutions tailored to your specific needs. Do not compromise on your electrical safety or system longevity. We invite you to leave your contact information and project details on our website today. Our engineering team will reach out promptly to provide a customized quote. We offer technical consultation tailored to your specific power requirements.
