Facility managers and electrical engineers face constant pressure in 2026 to optimize power distribution. You worry about the massive space consumed by traditional cable trays. You stress over the high risk of overheating in heavy-load circuits. You struggle with the rigid nature of hard-wired setups during facility expansions. As ZHERUTONG, a leading busbar trunking manufacturer, we frequently encounter these exact pain points from our global industrial clients.
A busbar trunking system is a prefabricated electrical distribution solution utilizing enclosed copper or aluminum conductors to safely and efficiently transmit high-amperage power.
We have prepared this comprehensive technical guide to share our manufacturing expertise. This article breaks down core structural components, current ratings, and installation protocols to help you engineer a safer and more scalable electrical backbone.
Busbar trunking systems serve as the primary electrical backbone to distribute high-voltage power across industrial plants, commercial skyscrapers, and modern data centers.
Cables lose efficiency over long distances and require massive physical space. Busbar systems solve this by consolidating power transmission into a compact rigid enclosure. Facilities use them to power heavy machinery and server racks. You can tap off power anywhere along the line without shutting down the entire grid. We see up to 40% reduction in transmission losses compared to traditional cabling. This efficiency makes them indispensable for heavy load applications.

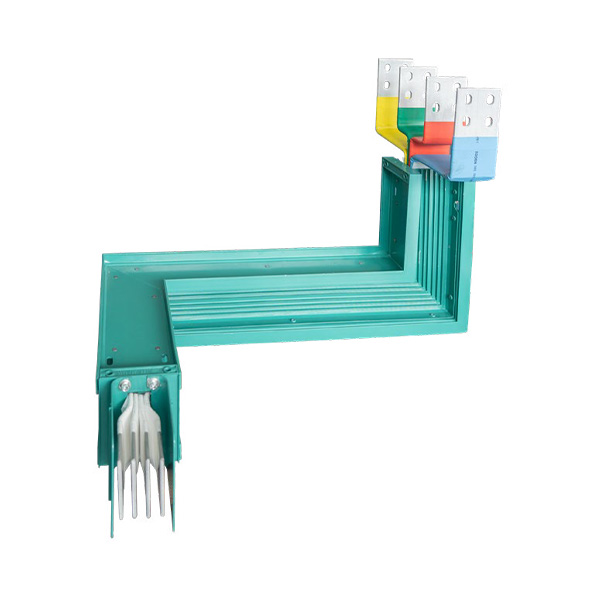

The core structure consists of highly conductive copper or aluminum strips wrapped in advanced insulation and encased within a protective metallic housing.

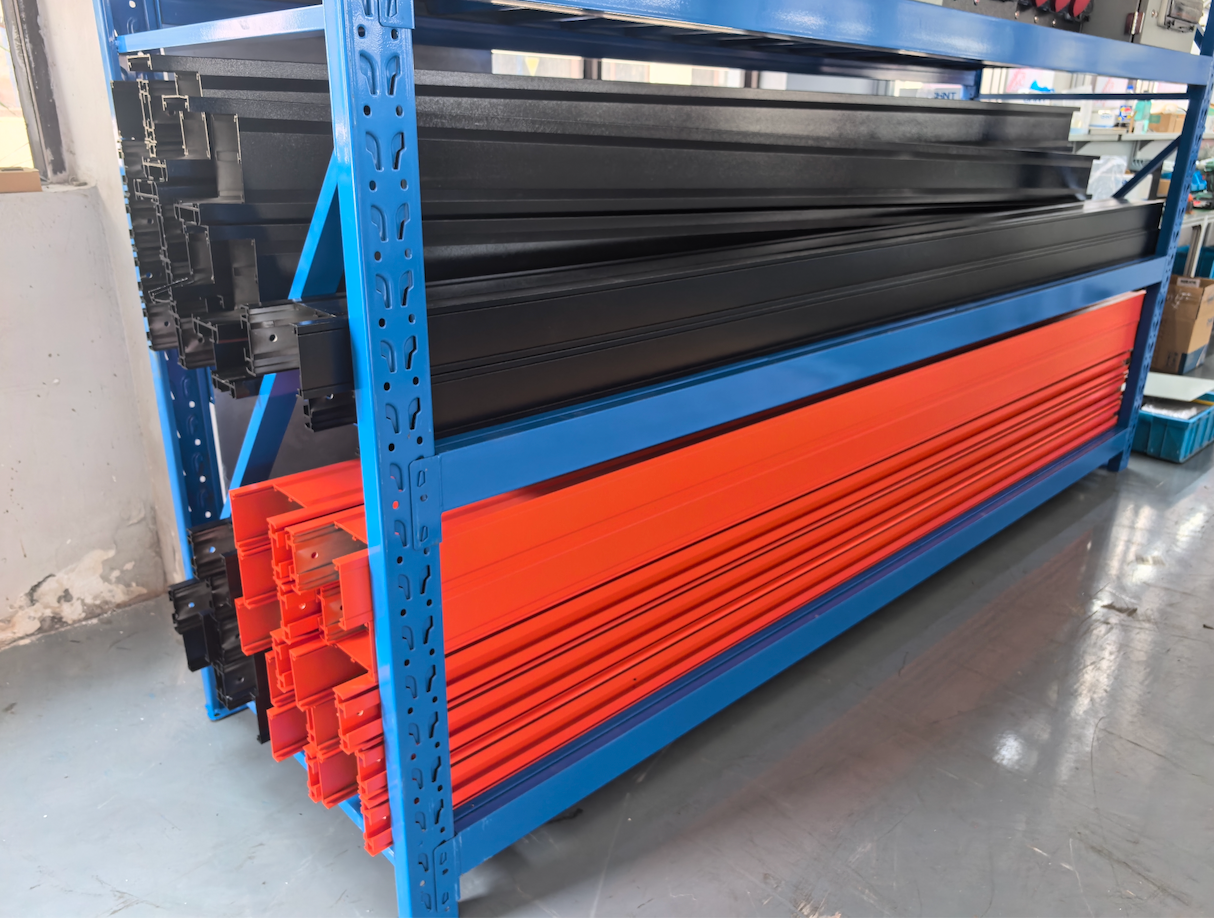

The internal conductors transport the electrical current across the facility. Insulation prevents short circuits and manages internal thermal output. The outer enclosure shields the internal system from mechanical impacts and moisture ingress. We engineer our enclosures using extruded aluminum or galvanized steel to achieve high durability. Tap-off points are integrated at intervals of 0.5 to 1 meter. These points allow easy connection of external loads.
|
Component |
Material |
Primary Function |
Standard Specs |
|
Conductors |
Copper or Aluminum |
Transmit high-amperage current |
99.9% purity |
|
Insulation |
Epoxy or Polyester |
Prevent electrical faults |
Halogen-free Class B or F |
|
Enclosure |
Steel or Aluminum |
Protect against physical damage |
IP54 to IP68 rating |
|
Tap-off unit |
Mixed metals |
Allow localized power extraction |
16A to 1250A capacity |
Manufacturers categorize busbar systems into compact sandwich designs, air-insulated configurations, and cast-resin models based on their internal dielectric arrangements.
Choosing the wrong type leads to thermal degradation or space conflicts. Sandwich types pack conductors tightly together to minimize electromagnetic interference. Air-insulated systems leave physical gaps between conductors for natural cooling. Cast-resin systems embed the conductors in a solid polymer for extreme environmental protection. We highly recommend sandwich types for high-density commercial buildings. Cast-resin is mandatory for outdoor chemical plants.
|
Type |
Insulation Method |
Best Application |
Max Current |
|
Sandwich |
Solid epoxy coating |
High-rise buildings |
Up to 6300A |
|
Air-Insulated |
Air gaps between bars |
Light industrial plants |
Up to 1250A |
|
Cast-Resin |
Solid polymer block |
Outdoor or hazardous areas |
Up to 6300A |
|
Lighting |
Plastic and air |
Warehouse ceilings |
Up to 63A |
Busbar ratings define the maximum continuous electrical current, voltage capacity, and short-circuit withstand thresholds the system can safely handle.
Engineers must match the system rating to the facility load. Overloading causes catastrophic thermal failure and fire hazards. Copper systems typically carry higher currents than aluminum variants of the exact same physical size. Standard low-voltage systems operate safely up to 1000V AC. The short-circuit withstand rating dictates how long the system survives a fault. This duration is usually measured at 1 second or 3 seconds.
Installation requires aligning prefabricated modular sections, securing them with torque-controlled joint bolts, and mounting the assembly to structural supports.
Poor installation causes joint overheating and severe voltage drops. You must map the routing path carefully to avoid structural clashes. Sections snap together like modular building blocks. Installers must apply exact torque specifications to joint bolts. This ensures optimal electrical contact between sections. We advise using thermal imaging cameras immediately after energization. This helps detect any high-resistance joints before they fail.
|
Metric |
Traditional Cabling |
Busbar Trunking |
|
Labor Time |
4 to 6 weeks |
1 to 2 weeks |
|
Space Required |
Massive horizontal cable trays |
Compact rigid metallic paths |
|
Routing Method |
Complex bending and pulling |
Modular prefabricated angle units |
|
Future Expansion |
Requires entirely new cable pulls |
Simple plug-in tap-off boxes |
These systems dramatically reduce installation time, lower energy transmission losses, and provide unmatched flexibility for future facility expansions.
Modern facilities cannot afford extended operational downtime. Hard-wired networks demand extensive labor and material costs when reconfiguring equipment. Busbars allow instant power access through plug-in units without de-energizing the main line. The low impedance design minimizes voltage drops over long runs. This efficiency translates directly into lower operational electricity costs. Upgrading your facility becomes a plug-and-play operation.
Proper maintenance involves routine infrared thermography scans, torque verification at joints, and visual inspections for moisture or physical damage.
Neglect leads to loose connections and eventual arc flashes. Thermal cycling naturally causes joint hardware to expand and contract over time. You must verify bolt torque during your annual facility shutdowns. Cleaning the exterior prevents dust accumulation from compromising heat dissipation. We strongly suggest keeping detailed baseline thermal records immediately after the initial commissioning. Compare future scans against this baseline.
|
Task |
Frequency |
Target Area |
Tool Required |
|
Thermal Scan |
Every 6 months |
All joint connections |
Infrared camera |
|
Torque Check |
Annually |
Joint bolts |
Torque wrench |
|
Visual Check |
Quarterly |
Enclosures and supports |
Flashlight |
|
Insulation Test |
Every 3 years |
Entire system |
Megohmmeter |
While the initial material expense exceeds traditional copper cables, the total lifecycle cost is significantly lower due to reduced labor and operational efficiency.
Procurement managers often balk at the upfront price tag. You must calculate the total cost of ownership over decades. Cables require massive labor hours and extensive support trays. They also suffer from higher energy losses. Busbars offset their premium through rapid deployment and lower voltage drops. We see return on investment within three to five years for most heavy industrial applications.
Purchasing requires submitting detailed single-line diagrams, routing layouts, and exact load specifications to the manufacturer for precise custom fabrication.
Off-the-shelf purchasing does not work for large infrastructures. Every building has unique architectural constraints and power demands. You must calculate the exact continuous current and short-circuit requirements. We use 3D modeling software to design custom elbows and flange connections based on your blueprints. Accurate upfront engineering prevents costly delays during site installation.
As ZHERUTONG, we deliver end-to-end engineering support for your power distribution networks. If you are planning a new facility or upgrading an existing grid, our technical team is ready to assist. Please submit your project specifications through our website contact form so we can provide a customized technical proposal and quotation today.
